ESD Flooring

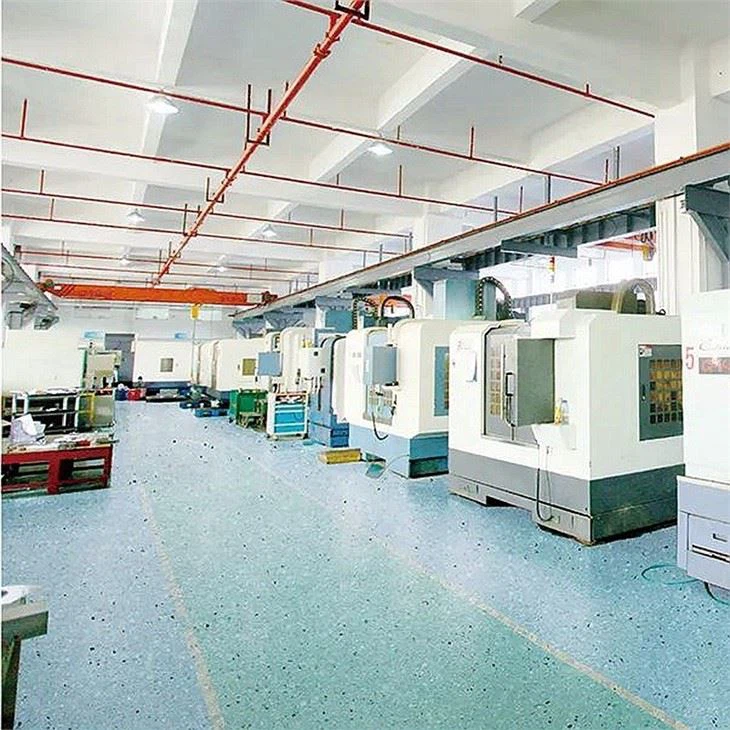

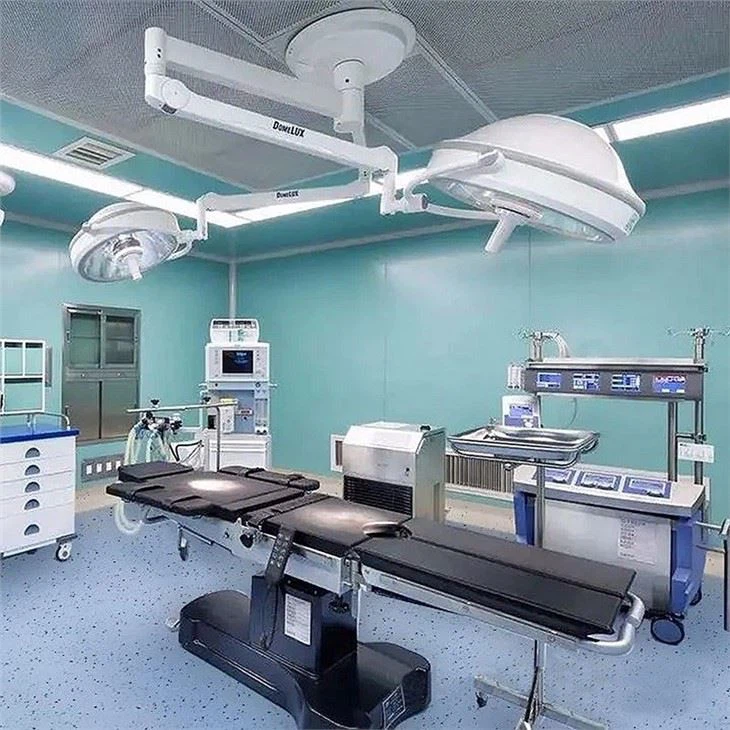

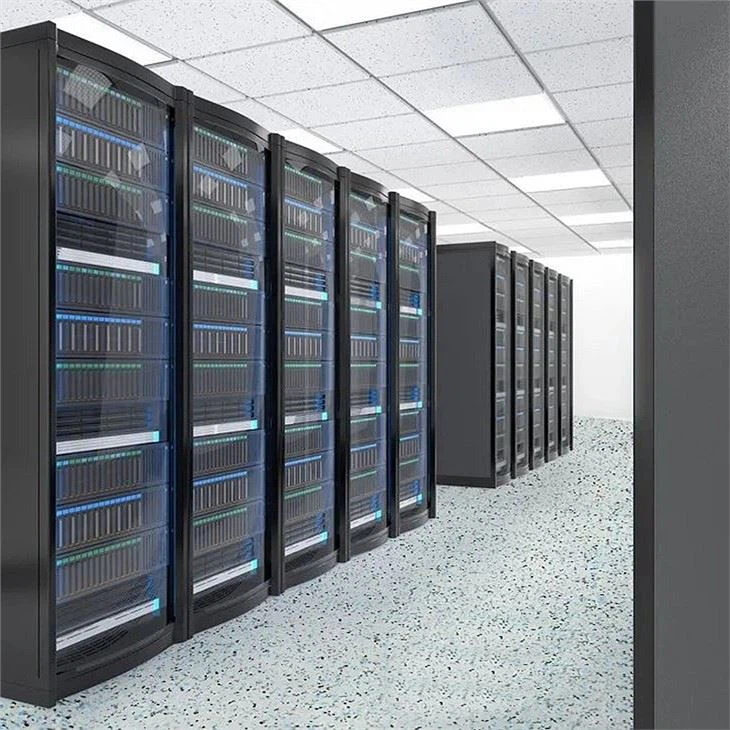

Anti Static Vinyl Flooring has excellent electrical conductivity, which can improve the safety factor of the working environment in an all-round way. It ensures the production and living spaces more secure. It is usually used in electronics factory, research institute, laboratory, operation room, computer room, pharmaceutical company clean workshop, flammable and explosive storage area, etc.
Product Overview
Anti Static Vinyl Flooring has excellent electrical conductivity, which can improve the safety factor of the working environment in an all-round way. It ensures the production and living spaces more secure. It is usually used in electronics factory, research institute, laboratory, operation room, computer room, pharmaceutical company clean workshop, flammable and explosive storage area, etc.
Product Parameters：
Product Name: | Anti Static Vinyl Flooring |
Selling Points: | Static Conductive; Fast Installation |
Structure: | Homogeneous |
Sheet Format: | 2mX20m |
Tile Format: | 600mmX600mm |
Thickness: | 2.0mm |
Weight: | 3000g/m2 (sheet format) 4200g/m2 (tile format) |
Electrical Resistance (conductive) | 104-106Ω |
Electrical Resistance (dissipative) | 106-109Ω |
Heavy Metal: | NO |
Phthalate: | NO |
Surface: | Static Conductive PUR coating |
Qualified Technical Data：
Test Items | Test Standards | Test Results |
Fire Classification | ISO 13501-1 | ClassBf1s1 |
EN ISO 9239-1 | ≥8KW/m² | |
EN ISO 11925-2 | Qualified | |
Anti-slip Test | DIN 51130 | R9 |
Anti-static Property | EN 1815 | <2KV |
Dimensional Stability | ISO 23999 | ≤0.4% |
Residual Indentation | EN ISO 24343-1 | ≤0.1mm |
Castor Chair Test | EN 425 | Qualified |
Flexibility | EN ISO 24344 | Qualified |
Colour Fastness | EN ISO 105-B02 | ≥Grade 6 |
Limit of Harmful Substances | GB 18586 | Qualified |
Electrical Resistance (conductive) | EN 1081 | 104-106Ω |
Electrical Resistance (dissipative) | EN 1081 | 106-109Ω |
FAQ
Q: How to clean the hospital vinyl flooring?
A: Electrical sweeper or mop; the flooring is 100% waterproof.
Q: How long is the lead time?
A: Normally, 15-25 days after deposit.
Q: Can I buy 10-20 sqm? 100-200 sqm?
A: Sorry, we do not retail. MOQ is 1000sqm per specification.
Q: Can I require some samples?
A: Of course. We can deliver to you, random colours what we have in storage.
PRODUCTION PROCESS
1. RAW MATERIAL ---2. GLUING &LAY UP – 3. COLD & HOT PRESS --- 4. PUTTING – 5. SANDING –6. VENEER LAMINATION --- 7. POLISHING --- 8. INSPECTION – 9. LOADING & SHIPPING
QUALITY CONTROL & PACKING
We have a persistent pre-shipping inspection system. The inspection process starts immediately after the order is confirmed. The grade and type of raw material, processing methods, inspection and packing details will be advised to the factory management.
Our factory and certificate
After 20 years of development, SUMEC has become a professional enterprise providing modern service in the building material industry. SUMEC has invested our own wood panel manufacturing bases successively and obtained successively a variety of business qualifications including ISO 9001, 14001, 18001 and product certifications such as FSC and CARB. We now have an annual production capacity of over 500 thousand cubic meters and can meet various demands.
